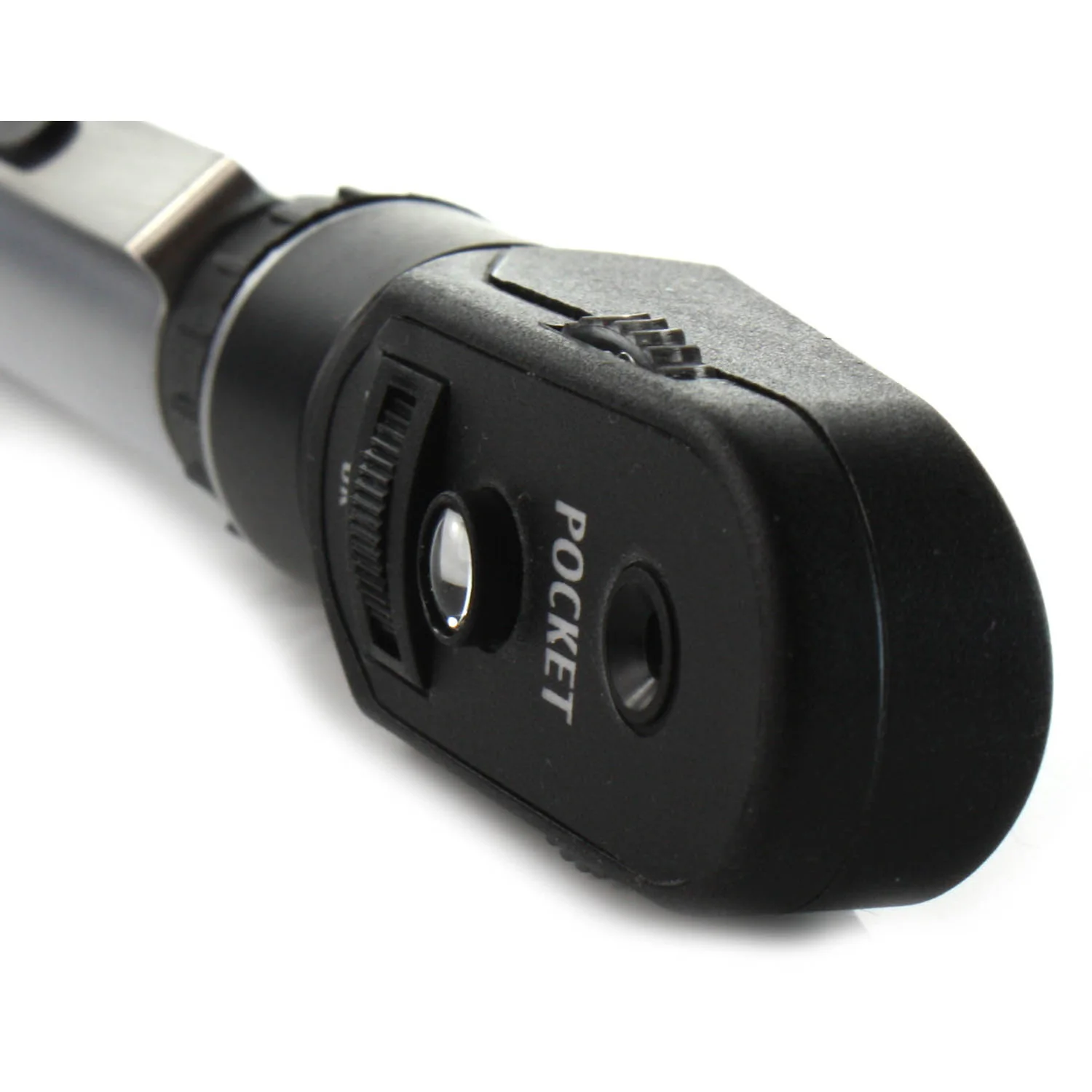

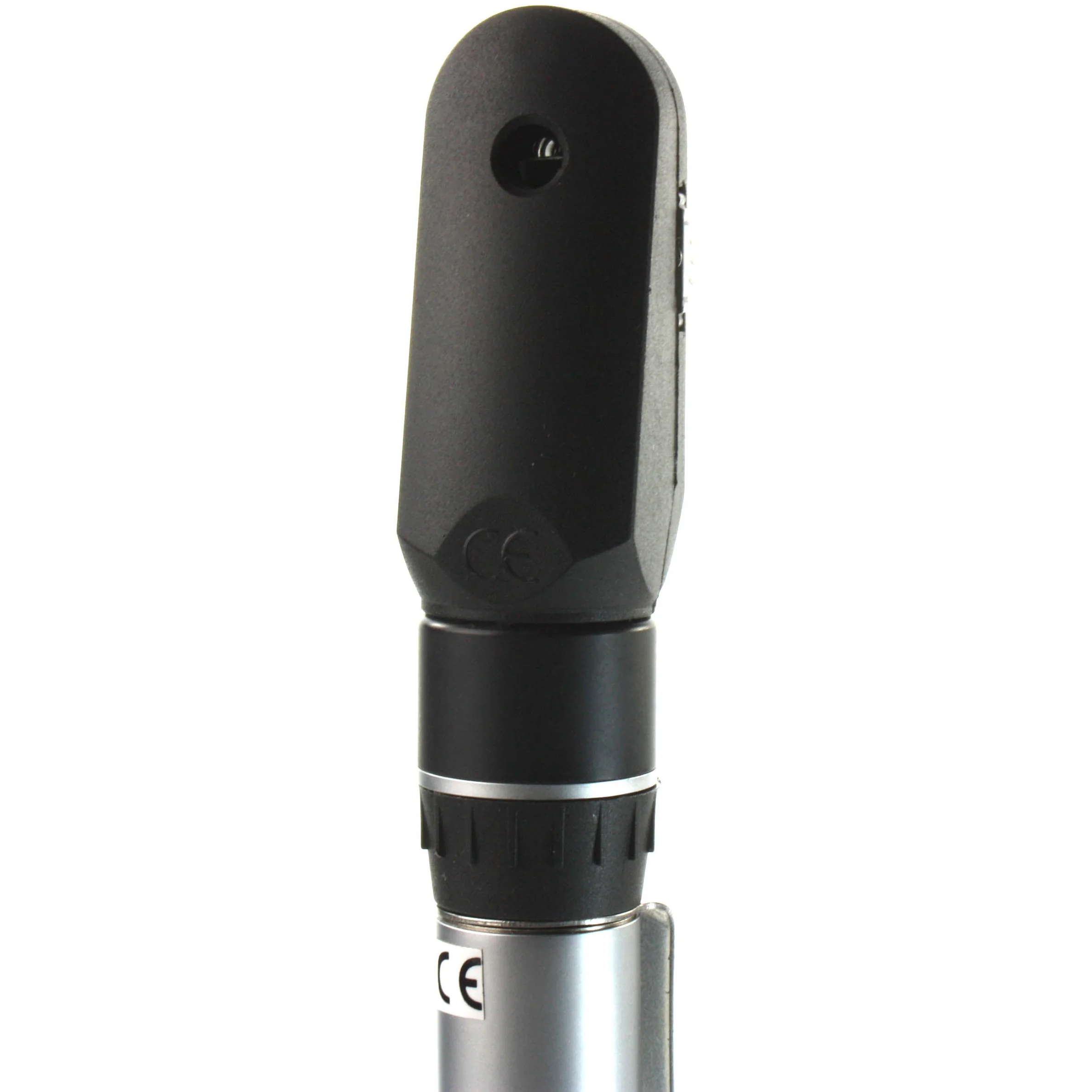

Pocket Ophthalmoscope

• 6 apertures:
  • Small - allows quick entry into small, undilated pupils.
  • Medium - provides excellent view of fundus through an undilated pupil.
  • Large - general examination of the eye through dilated pupil.
  • Red-Free Fixation Cross - cross-hairs for measuring eccentric fixation or locating lesions.
  • Slit - used to determine levels of lesions and tumors.
  • Red-Free - filters out red light for easy identification of veins, arteries and nerve fibers.
• 15 focusing lenses with a range of -20 to +20 diopters, adjustable via easy-to-reach maywheel.
• Renowned high performance Keeler optics with aspherical lens

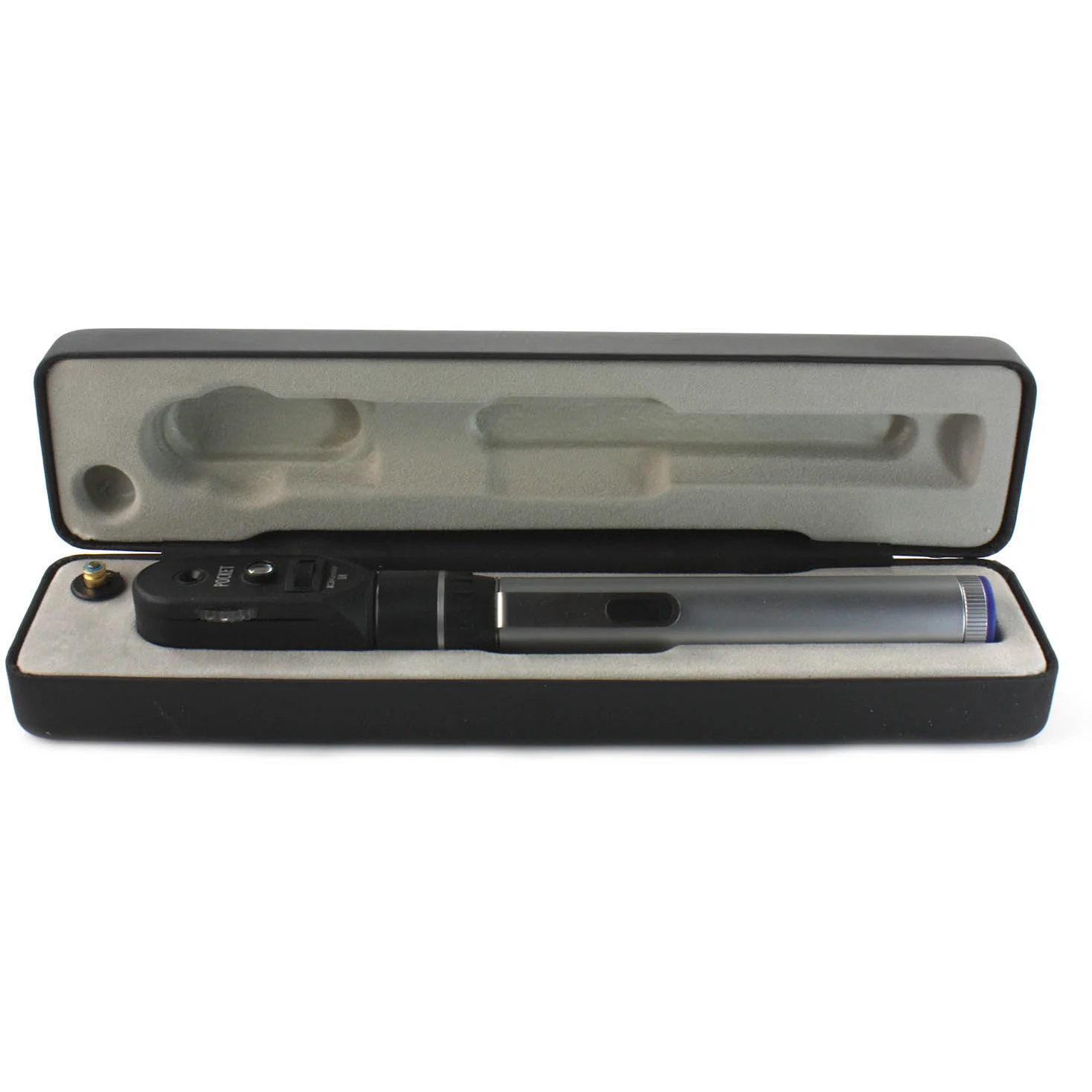

• Comes complete with a spare bulb.

aperture selection disc
Switch easily between 6 apertures

Six Apertures
A wide range of practical apertures to select from.

Maywheel Focus
Easy access on either side of the head to adjust the diopters.

Replacement Bulb
Easy to replace the included bulb.

Rheostat Control
Smoothly control the power of illumination.
