Excellent Welch Allyn performance in a smaller package.

The set consists of:

• 1x Fibre Optic halogen pocket otoscope.
• 1x Halogen pocket ophthalmoscope.
• 1x AA battery powered handle.
• 1x Soft zippered carry pouch.

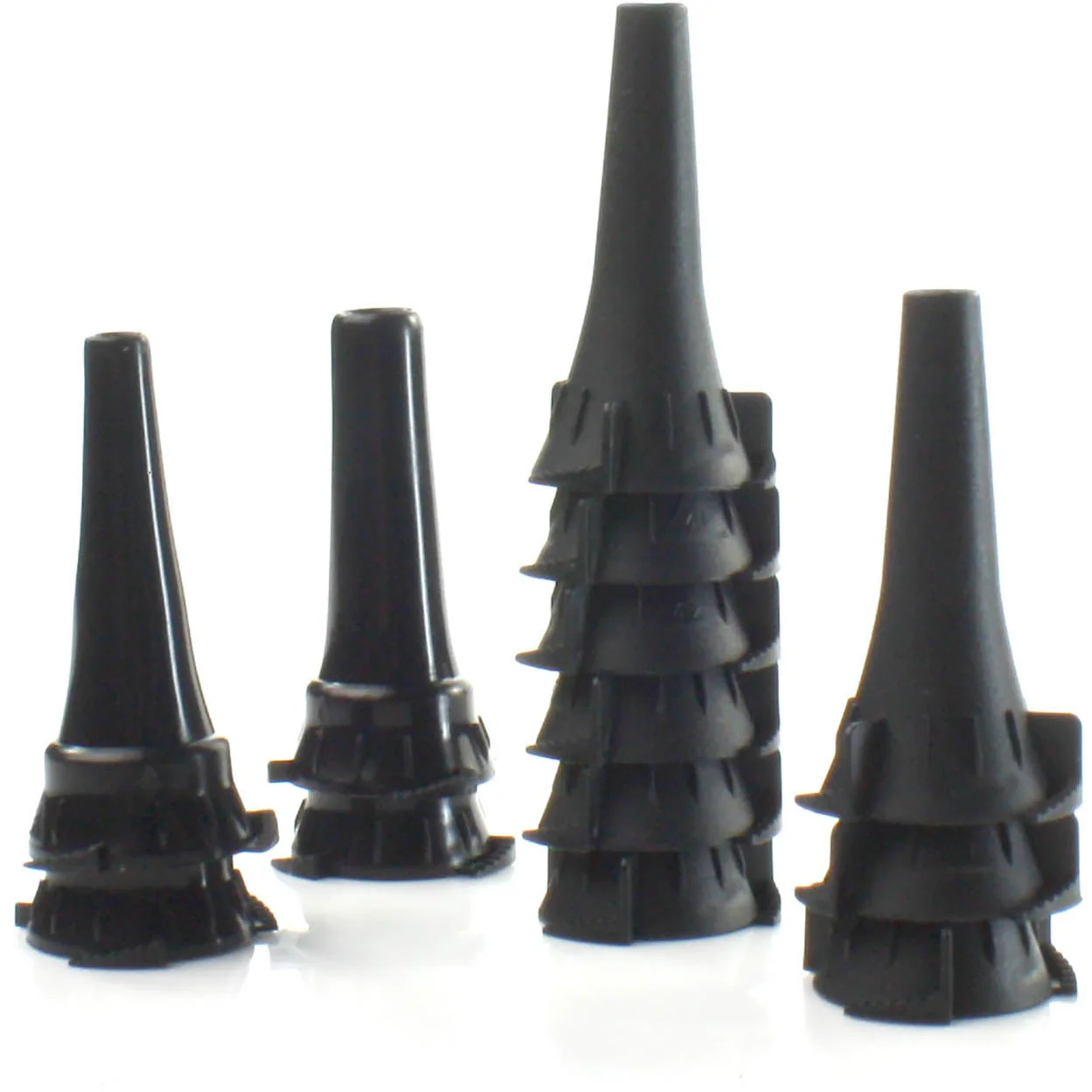

• Includes 3 LumiView adult-sized specula & 2 paediatric sized specula.

Fibre Optic Halogen Pocket Otoscope

• Rectangular viewing lense for instrumentation under magnification.
• Fibre optics produce a ring of even light for an unobstructed, glare-free view.
• Bright white halogen light for a cool light with no reflections of obstructions.
• Insufflation port for manipulation of the tympanic membrane (bulb not included)
• Handle powered by 2 regular AA alkaline batteries.
• Variable illumination strength via the handle rheostat dial.

Clear direct view
360° ring of FO light allows a completely unobstructed view.

Rheostat Control
Vary the power of illumination with the smooth turn of a dial.

Sliding Optics
Allows easy access for cleaning.

Insufflation port
For optional pneumatic otoscopy.

Halogen Pocket Ophthalmoscope

• 6 apertures and 1 Filter:
  • Small - allows quick entry into small, undilated pupils.
  • Medium - provides excellent view of fundus through an undilated pupil.
  • Large - general examination of the eye through dilated pupil.
  • Fixation Cross - cross-hairs for measuring eccentric fixation or locating lesions.
  • Slit - used to determine levels of lesions and tumors.
  • Cobalt Blue - used with flourescein dye to view small lesions, abrasions and foreign objects on the cornea.
  • Red-Free Filter - filters out red light for easy identification of veins, arteries and nerve fibers.
• 48 focusing lenses with a range of -20 to +20 diopters, adjustable via easy-to-reach maywheel.
• Soft brow-rest suitable for use with spectacles.

aperture selection disc
Switch easily between 6 apertures

Six Apertures
A wide range of practical apertures to select from.

Maywheel Focus
Easy access on either side of the head to adjust the diopters.

Red-Free Filter
Red-free filter can be used in tandem with any aperture.

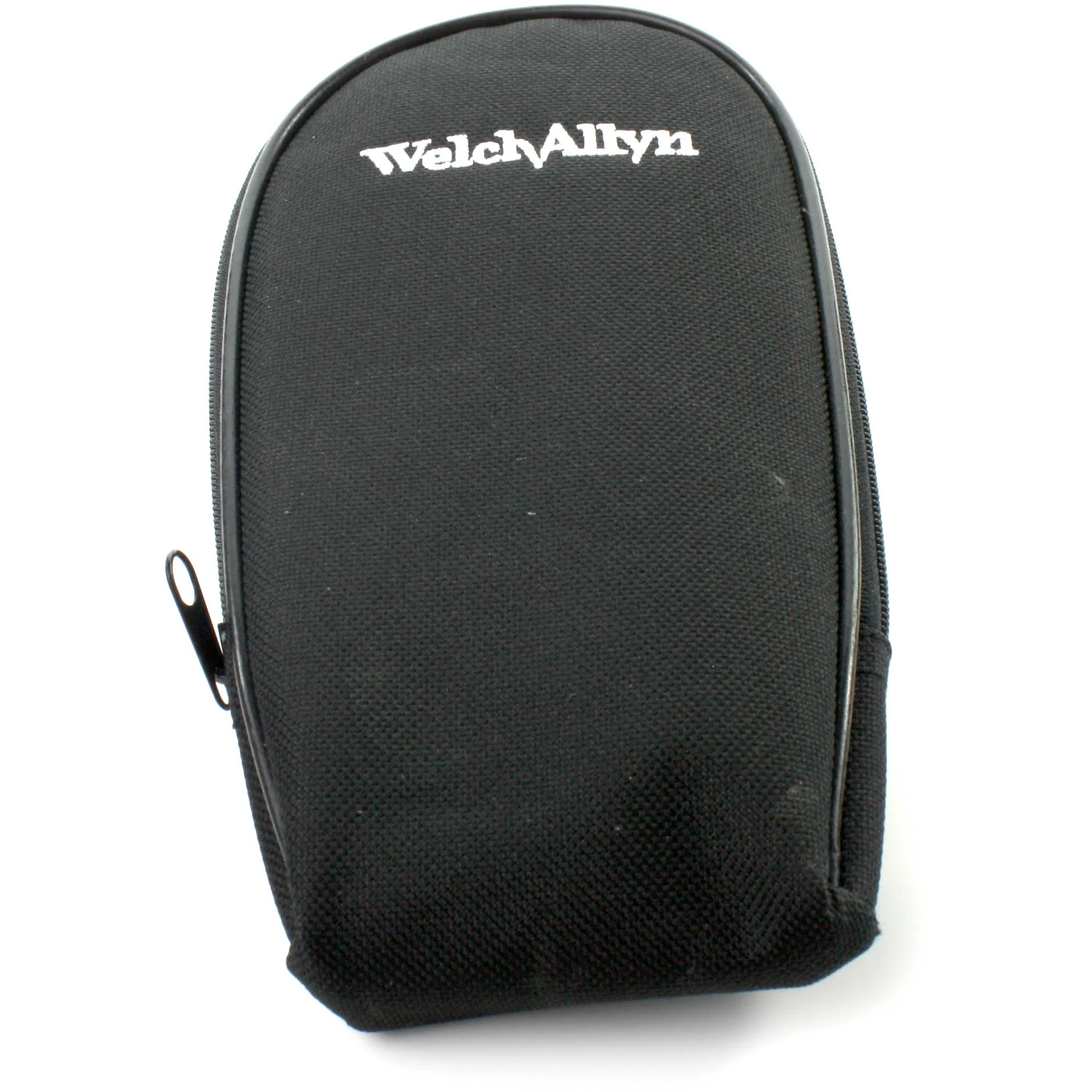

Soft Carry Case

• Soft carry case with zippered fastening.
• Segmented inner for individual instrument storage.

AA Battery Powered Handle

• Smooth, nonabrasive knurled finish ensures a no-slip grip.
• Chrome-plated brass construction for durability and reliable long-life.
• Takes two AA batteries (not included).

Pocket Clip
Handy clip for attachment to pockets.

Battery power
Powered by standard AA size alkaline batteries (not included).
