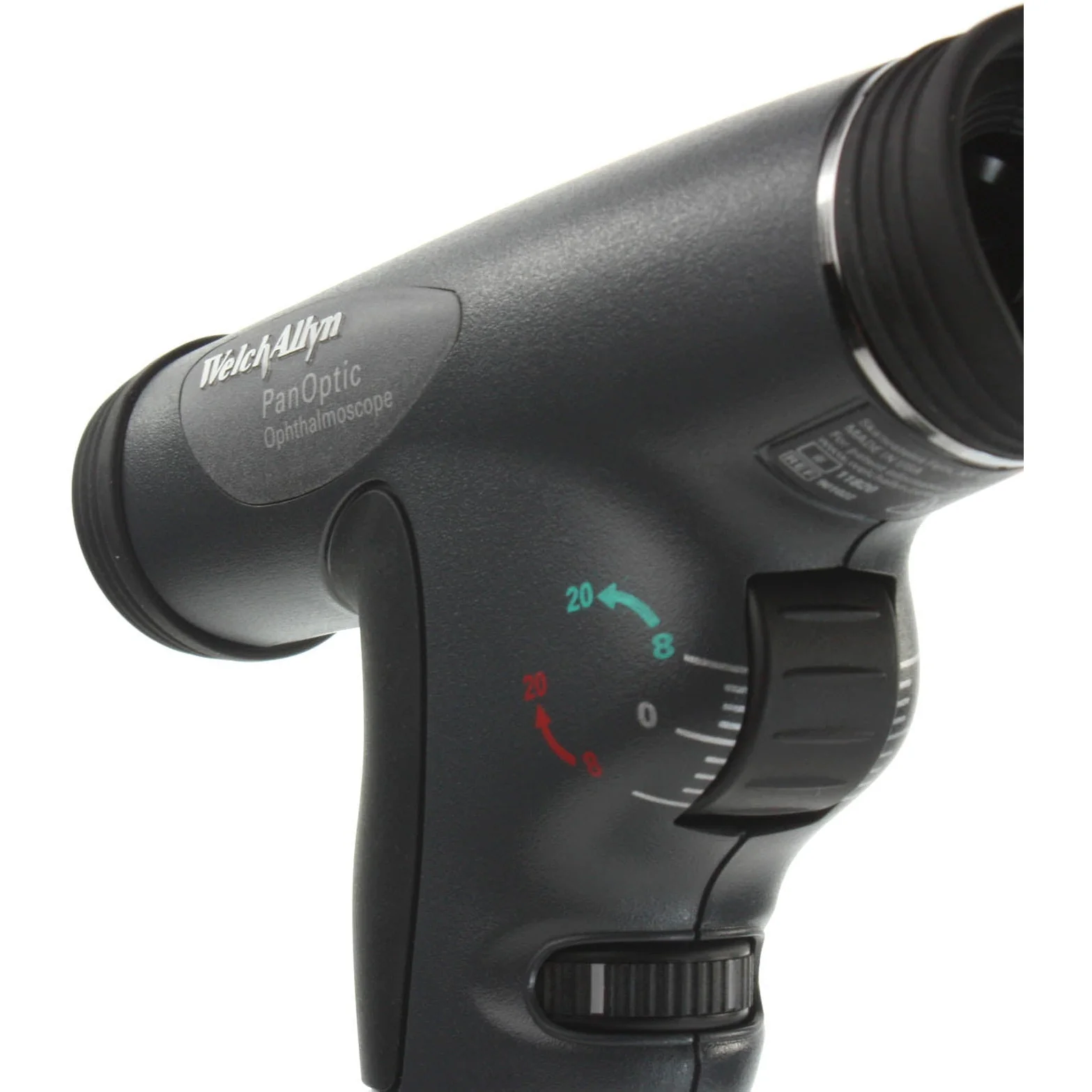

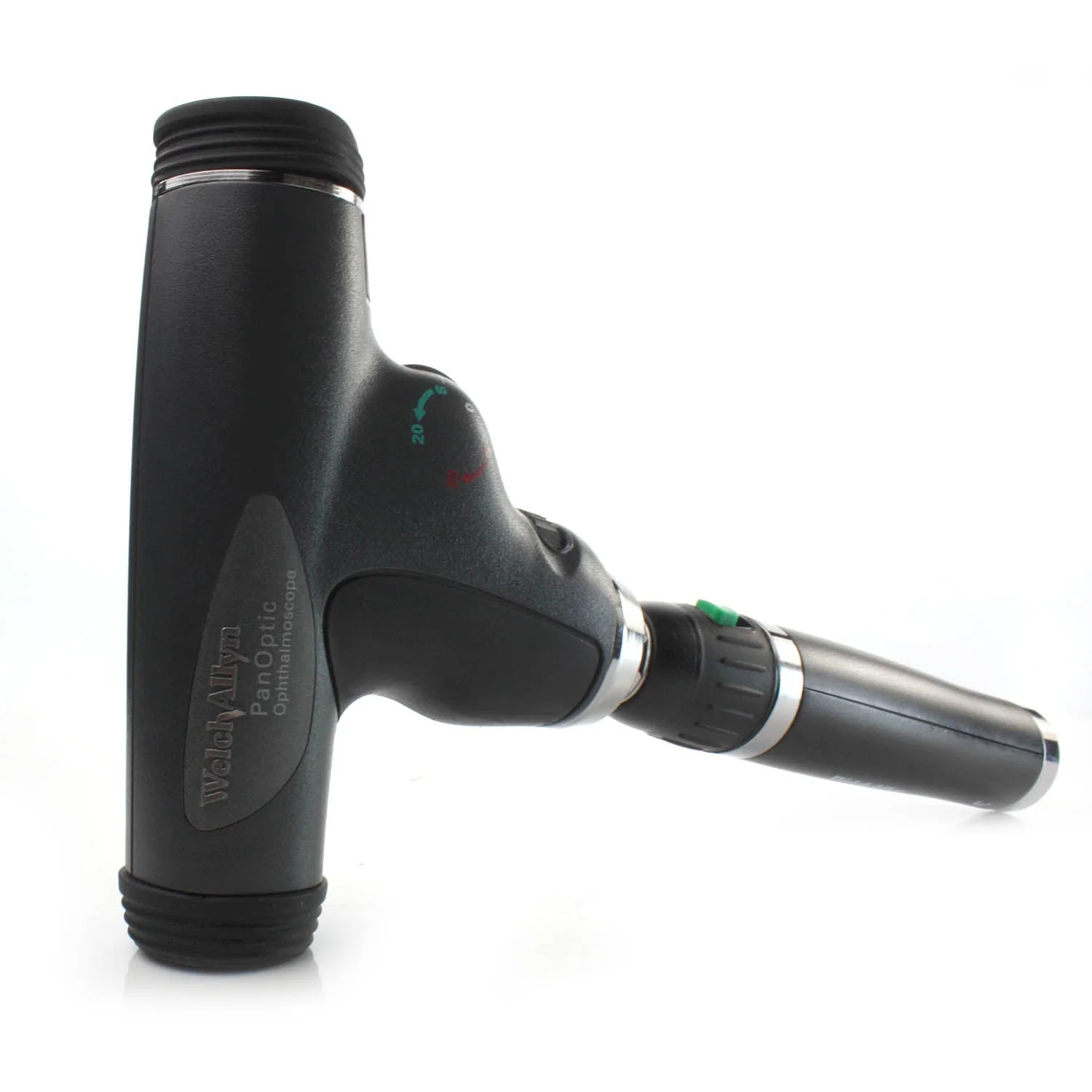

80820 | PanOptic™ Ophthalmoscope

• 5X larger view of the fundus - 25° field of view as opposed to 5° from a regular ophthalmoscope.
• 26% increase in magnification makes retinal details clearer and easier to see.
• Halogen light for true tissue colour and consistent, long-lasting performance.
• Axial PointSource™ optics produce a shadow-free spotlight, easier entry into undilated pupils.

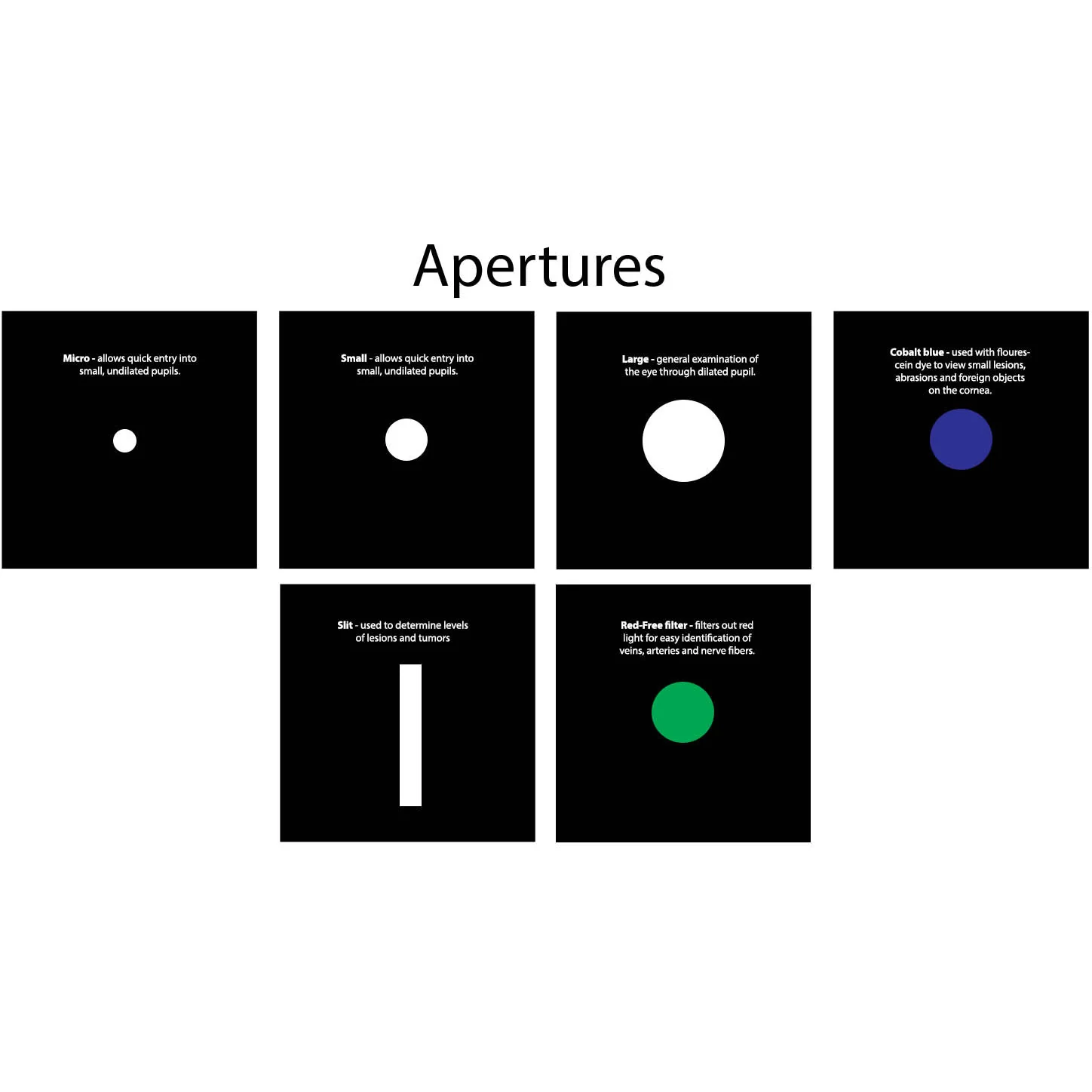

• 6 apertures:
  • Micro - allows quick entry into small, undilated pupils.
  • Small - provides excellent view of fundus through an undilated pupil.
  • Large - general examination of the eye through dilated pupil.
  • Slit - used to determine levels of lesions and tumors.
  • Cobalt blue - used with flourescein dye to view small lesions, abrasions and foreign objects on the cornea.
  • Red-Free filter - filters out red light for easy identification of veins, arteries and nerve fibers.
• Dynamic focus - smoothly and precisely adjust the focus from -25 to +20 diopters, adjustable via easy-to-reach focussing wheel.
• Patient eyecup comfortably establishes and maintains proper viewing distance and screens out ambient light.
• Greater working distance and ergonomic design for maximum comfort and ease of use.
• Variable illumination strength via the handle rheostat dial.

Rheostat Control
Vary the power of illumination with the smooth turn of a dial.

Aperture Selection Disc
Switch easily between 6 apertures via a disc on the head.

Six Apertures
A wide range of practical apertures to select from.

DYnamic focus
Focus on the fundus, cornea, iris and other ocular structures.

5X Larger Field of view
25 degree field of view compared to 5 degrees on a regular ophthalmoscope.

Narrow beam entry point
Easier entry into undilated pupils compared to a standard ophthalmoscope (left).

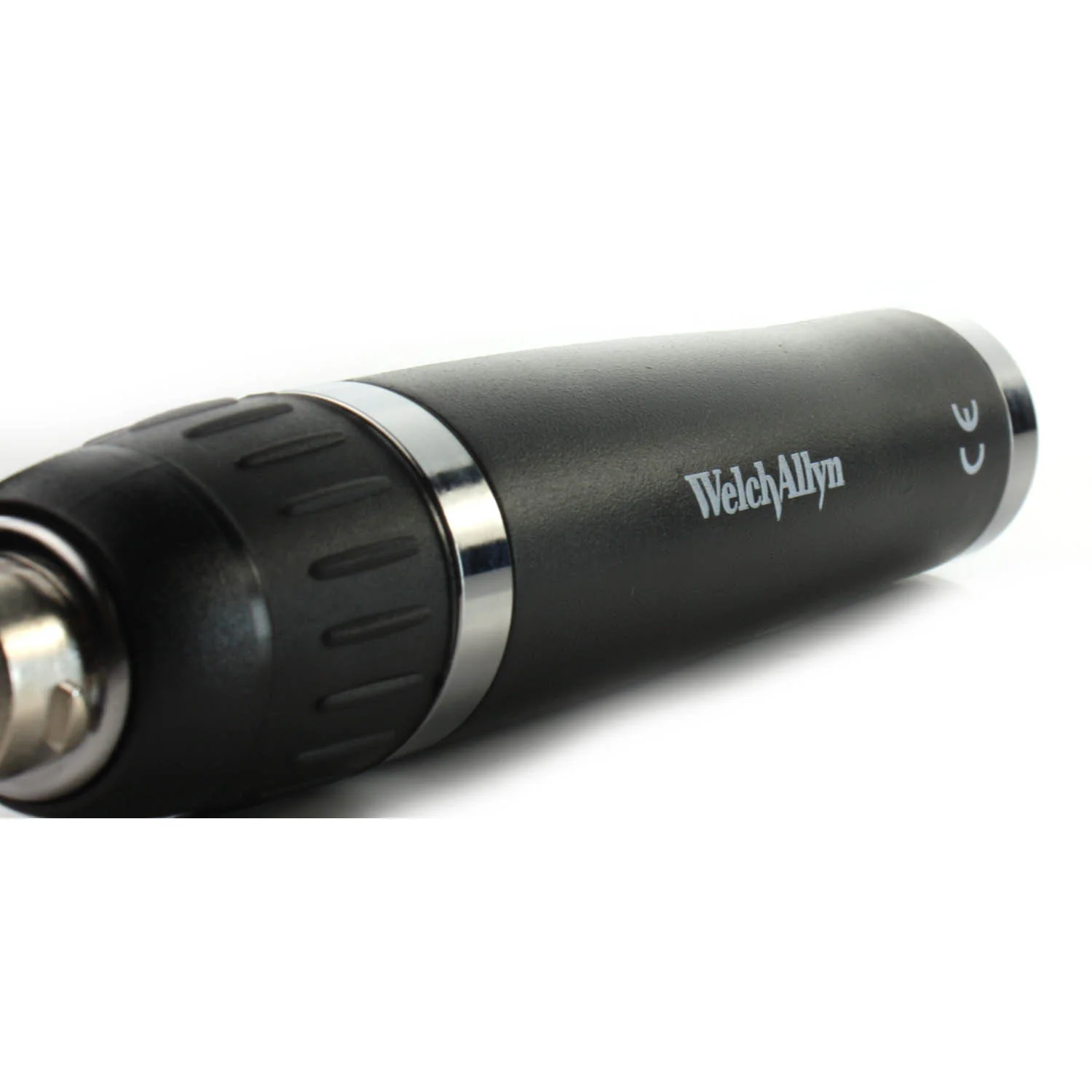

71910 | Lithium Ion Rechargeable Handle

• 120 minutes of on-time per charge, twice that of standard NiCad handles.
• Half the weight of traditional 3.5V handles.
• Low battery LED indicates when charge is required.

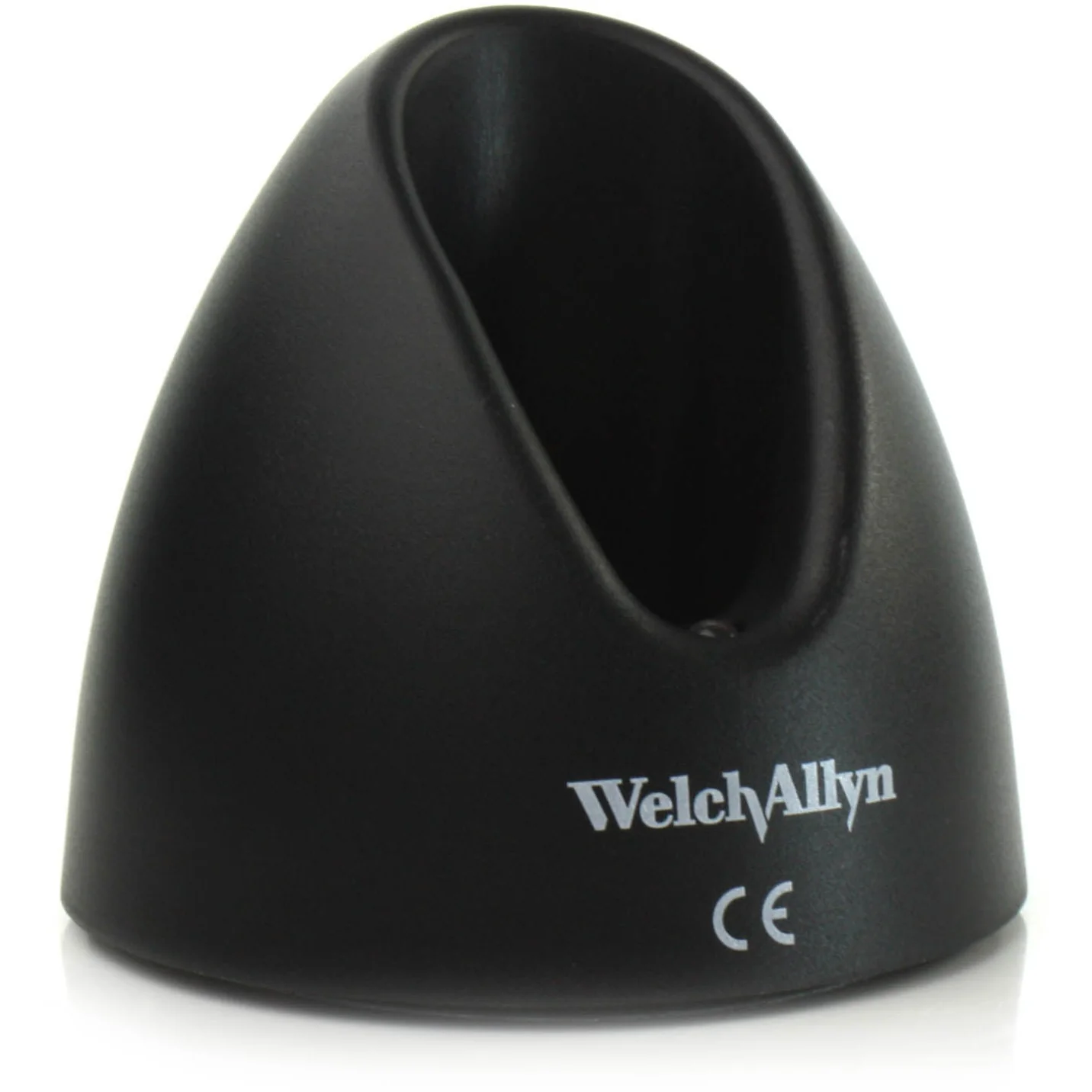

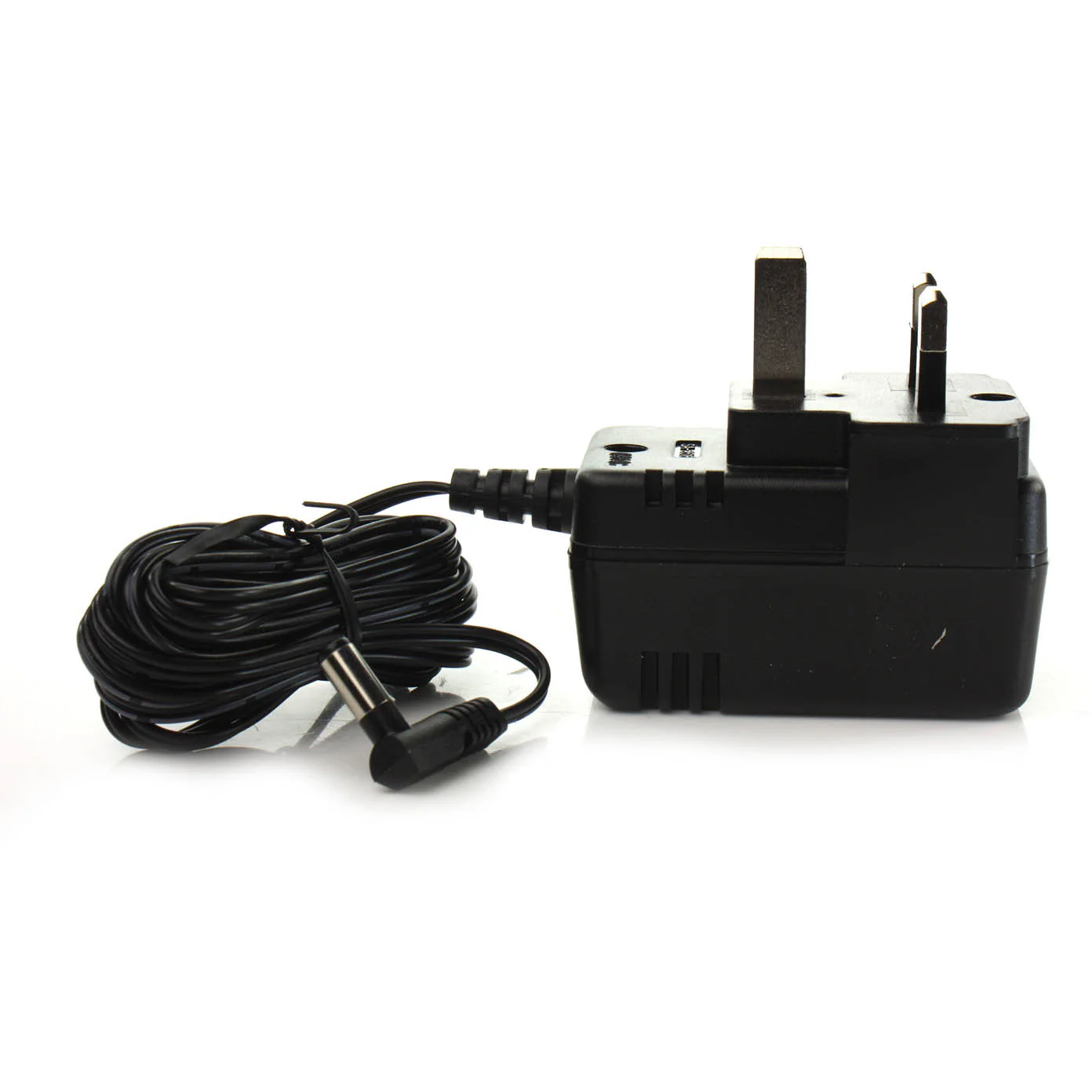

• Complete with attractive base unit charger and transformer.
• Fits all Welch Allyn 3.5v instrument heads.

Easy Attachment
Align cutouts with lugs, press and twist 90° to fit. Reverse procedure to remove.

Rheostat Control
Smoothly control the applied power with the easy grip dial.

Rechargeable power
Powered by lithium ion rechargeable handle. Charger included.

05258-M | Rigid Carry Case

• Leather effect exterior.
• Vacuum formed interior to keep instruments in place.
• Protective foam layer for shock absorption.
• Zip fastener.
